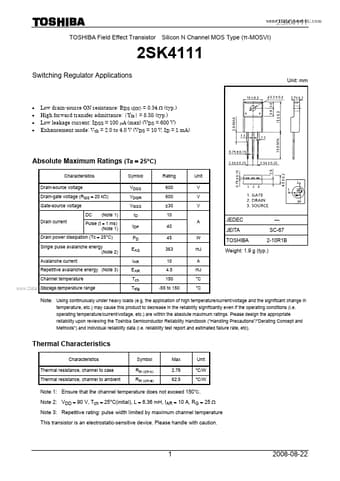

2SK4111
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSVI)
2SK4111
Switching Regulator Applications
Unit: mm
• • • •
Low drain-source ON resistance: RDS (ON) = 0.54 Ω (typ.) High forward transfer admittance: |Yfs| = 8.5S (typ.) Low leakage current: IDSS = 100 μA (max) (VDS = 600 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA)
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Drain-source voltage Drain-gate voltage (RGS = 20 kΩ) Gate-source voltage DC Drain current (Note 1) Symbol VDSS VDGR VGSS ID IDP PD EAS IAR EAR Tch Tstg Rating 600 600 ±30 10 40 45 363 10 4.
