2SA1158 - SILICON PNP TRANSISTOR

Toshiba

📥 Download Datasheet

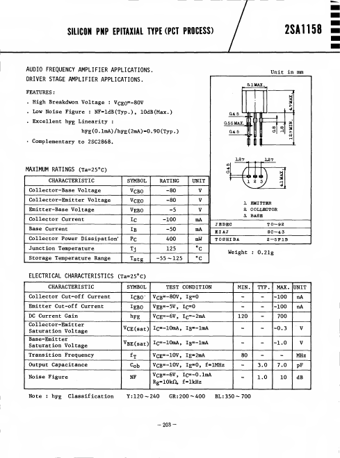

2SA1158 Datasheet Preview — Preview of 2SA1158 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SA1158
Manufacturer	Toshiba
File Size	96.15 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SA1158-Toshiba.pdf

2SA1158 Product details

Features

. High Breakdwon Voltage : VceO=-80V . Low Noise Figure : NF=ldB(Typ. ) , 10dB(Max. ) . Excellent hpE Linearity : hFE (0.
1mA) /hFE (2mA) =0 . 90 (Typ.
Complementary to 2SC2868. Unit in mm 51MAX.
