TPD1034F - High-side Power Switch

Features

  • z A monolithic power IC with a new structure combining a control block (Bi-CMOS) and a vertical power MOS FET (π-MOS) on a single chip. Weight: 0.08 g (typ. ) z One side of the load can be grounded to a high-side switch. z Can directly drive a power load from a microprocessor. z Built-in protection against thermal shutdown and load short-circuiting. z Incorporates a diagnosis function that allows diagnosis output to be read externally at load short-circuiting, opening, or overtemperature z.

📥 Download Datasheet

📁 Similar Datasheet

  • TPD1039F - Low-Side Power Switch (Toshiba)
  • TPD1052F - Silicon Monolithic Power MOS (Toshiba)
  • TPD1053F - Silicon Monolithic Power MOS (Toshiba)
  • TPD1054F - Low-Side Switch (Toshiba)
  • TPD1055FA - High side power switch (Toshiba)
  • TPD1058FA - Low-Side Switch (Toshiba)
  • TPD11CGPC - TP Series Pushbutton Switches (Tyco)
  • TPD11CGRA - TP Series Pushbutton Switches (Tyco)
  • TPD11FGPC - TP Series Pushbutton Switches (Tyco)
  • TPD11FGRA - TP Series Pushbutton Switches (Tyco)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

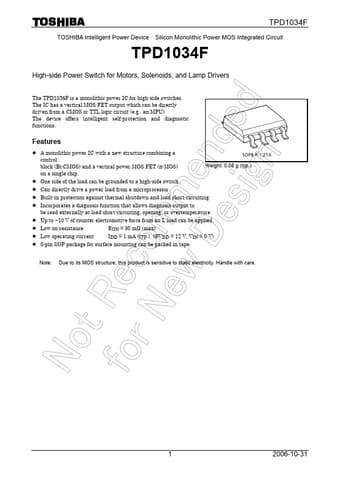

TPD1034F TOSHIBA Intelligent Power Device Silicon Monolithic Power MOS Integrated Circuit TPD1034F High-side Power Switch for Motors, Solenoids, and Lamp Drivers The TPD1034F is a monolithic power IC for high-side switches. The IC has a vertical MOS FET output which can be directly driven from a CMOS or TTL logic circuit (e.g., an MPU). The device offers intelligent self-protection and diagnostic functions. Features z A monolithic power IC with a new structure combining a control block (Bi-CMOS) and a vertical power MOS FET (π-MOS) on a single chip. Weight: 0.08 g (typ.) z One side of the load can be grounded to a high-side switch. z Can directly drive a power load from a microprocessor. z Built-in protection against thermal shutdown and load short-circuiting.
Published: |
