TLP700 Datasheet - Toshiba Semiconductor

TLP700 Photocoupler

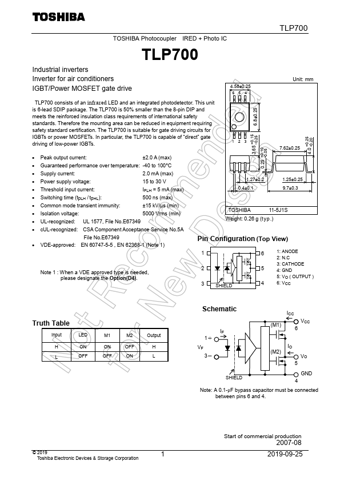

+0.2 5 -0.20 TOSHIBA Photocoupler IRED + Photo IC TLP700 TLP700 Industrial inverters Inverter for air conditioners IGBT/Power MOSFET gate drive 4.58±0.25 654 Unit: mm TLP700 consists of an infrared LED and an integrated photodetector. This unit is 6-lead SDIP package. The TLP700 is 50% smaller than the 8-pin DIP and meets the reinforced insulation class requirements of international safety standards. Therefore the mounting area can be reduced in equipment requiring safety standard certifi.
