TLP179D Photocoupler

TOSHIBA PHOTOCOUPLER PHOTO RELAY TLP179D Measurement Instruments Logic IC Testers / Memory Testers Board Testers / Scanners TLP179D Unit: mm The TOSHIBA TLP179D Mini-flat photorelay is a small-outline photorelay, suitable for surface-mount assembly. The TLP179D consists of an infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. Its characteristics include low OFF-state current and low output pin capacitance, enabling it to be used in high-frequency measur.

TLP179D Features

* 4 pin SOP (2.54SOP4) : 2.1 mm high, 2.54 mm pitch

* 1-Form-A

* Peak OFF-State Voltage : 200 V (min)

* Trigger LED Current : 3 mA (max)

* ON-State Current : 50 mA (max)

* ON-State Resistance : 50 Ω (max)

* Output Capacitance : 20 pF

TLP179D_ToshibaSemiconductor.pdf

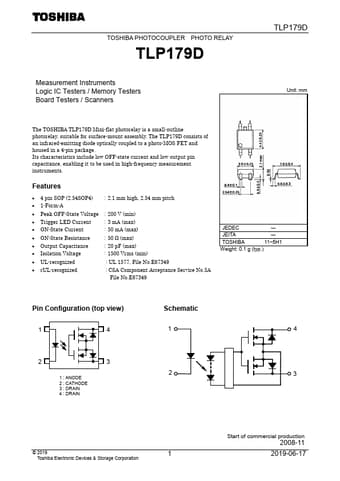

TLP179D Datasheet Preview — Preview of TLP179D PDF

Datasheet Details

Part number:

TLP179D

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

338.64 KB

Description:

Photocoupler.
