TK5A45DA - Silicon N-Channel MOSFET

Name: TK5A45DA
SKU: TK5A45DA-837991

Toshiba Semiconductor

The TK5A45DA by Toshiba Semiconductor is a Silicon N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	TK5A45DA
Manufacturer	Toshiba Semiconductor
File Size	228.60 KB
Description	Silicon N-Channel MOSFET
Datasheet	TK5A45DA-ToshibaSemiconductor.pdf

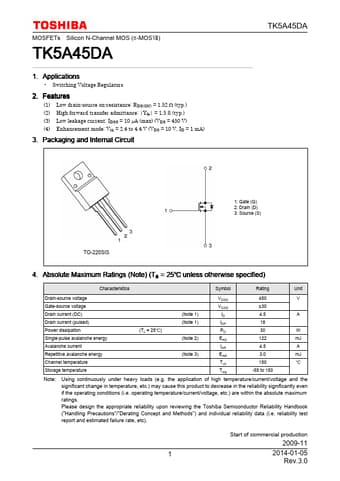

Additional preview pages of the TK5A45DA datasheet.

(1) (2) (3) (4) Low drain-source on-resistance: RDS(ON) = 1.52 Ω (typ. ) High forward transfer admittance: |Yfs| = 1.5 S (typ. ) Low leakage current: IDSS = 10 µA (max) (VDS = 450 V) Enhancement mode: Vth = 2.4 to 4.4 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit 1: Gate (G) 2: Drain (D) 3: Source (S) TO-220SIS 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed).
