TD74BC541P, TD74BC541, Octal Bus Buffer

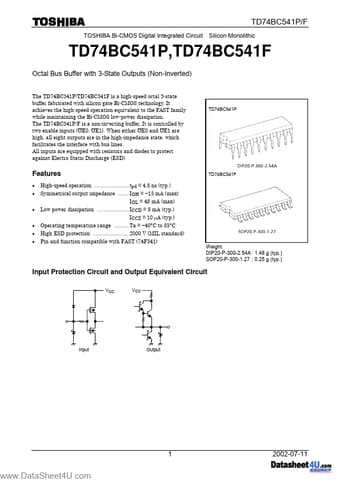

( DataSheet : www.DataSheet4U.com ) TD74BC541P/F TOSHIBA Bi-CMOS Digital Integrated Circuit Silicon Monolithic TD74BC541P,TD74BC541F Octal Bus Buffer with 3-State Outputs (Non-Inverted) The TD74BC541P/TD74BC541F is a high-speed octal 3-state buffer fabricated with silicon gate Bi-CMOS technology.
It achieves the high-speed operation equivalent to the FAST family while maintaining the Bi-CMOS low-power dissipation.
The TD74BC541P/F is a non-inverting buffer.
It is controlled by two enable input
TD74BC541P Features
* High-speed operation tpd = 4.8 ns (typ.)
* Symmetrical output impedance IOH =
* 15 mA (max) IOL = 48 mA (max)
* Low power dissipation ICCD = 8 mA (typ.) ICCZ = 10 mA (typ.)
* Operating temperature range Ta =
* 40°C to 85°C
* High ESD protection 2000 V (MIL st
