TC74ACT541FW - Octal Bus Buffer

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

TC74ACT541FW Octal Bus Buffer by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – TC74ACT541FW

Datasheet Details

Part number	TC74ACT541FW
Manufacturer	Toshiba Semiconductor
File Size	204.75 KB
Description	Octal Bus Buffer
Datasheet	TC74ACT541FW Datasheet
Note	This datasheet PDF includes multiple part numbers: TC74ACT541FW, TC74ACT540F. Please refer to the document for exact specifications by model.

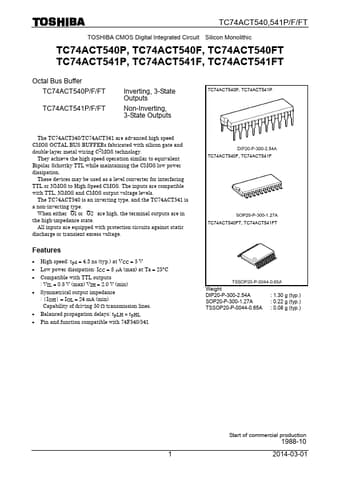

Additional preview pages of the TC74ACT541FW datasheet.

Product details

Features

High speed: tpd = 4.3 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 8 µA (max) at Ta = 25°C.
Compatible with TTL outputs : VIL = 0.8 V (max) VIH = 2.0 V (min).
Symmetrical output impedance : |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.
Balanced propagation delays: tpLH ∼.
tpHL.
Pin and function compatible with 74F540/541 TC74ACT540F, TC74ACT541F TC74ACT540FW, TC74ACT541FW TC74ACT540FT, TC74ACT541.
