TB6552FTG, TB6552FNG - Dual-Bridge Driver

Toshiba Semiconductor

📥 Download Datasheet

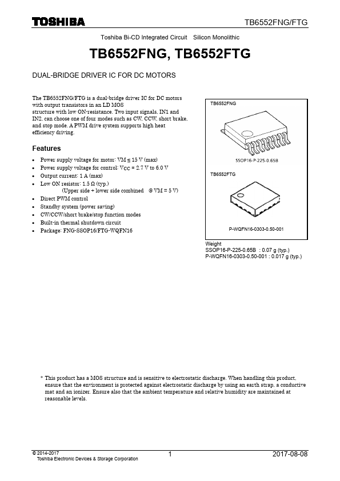

TB6552FTG Datasheet Preview — This datasheet PDF includes multiple part numbers: TB6552FTG, TB6552FNG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TB6552FTG, TB6552FNG
Manufacturer	Toshiba Semiconductor
File Size	381.13 KB
Description	Dual-Bridge Driver
Datasheet	TB6552FNG-ToshibaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TB6552FTG, TB6552FNG. Please refer to the document for exact specifications by model.

TB6552FTG Product details

Description

Remarks Small-signal GND pin Control signal input 1 (Ch.A) Control signal input 2 (Ch.A) PWM control signal input pin (Ch.A) Standby control input pin (Ch.A) Output pin 1 (Ch.A) Output pin 2 (Ch.A) GND pin for motor Motor power supply pin Output pin 2 (Ch.B) Output pin 1 (Ch.B) Standby control input pin (Ch.B) PWM control signal input pin (Ch.B) Control signal input 2 (Ch.B) Control signal input 1 (Ch.B) Small-signal power supply pin GND for small-signal power supply (VCC) Input P

Features

Power supply voltage for motor: VM ≤ 15 V (max).
Power supply voltage for control: VCC = 2.7 V to 6.0 V.
Output current: 1 A (max).
Low ON resistor: 1.5 Ω (typ. ) (Upper side + lower side combined @ VM = 5 V).
Direct PWM control.
Standby system (power saving).
CW/CCW/short brake/stop function modes.
Built-in thermal shutdown circuit.
Package: FNG-SSOP16/FTG-WQFN16 TB6552FNG TB6552FTG P-WQFN16-0303-0.50-001 Weight S.
