TA8162SN - DUAL PREAMPLIFIER

Product Overview

Toshiba Semiconductor

Part number	TA8162SN
Manufacturer	Toshiba Semiconductor
File Size	258.14 KB
Description	DUAL PREAMPLIFIER
Datasheet	TA8162SN Datasheet

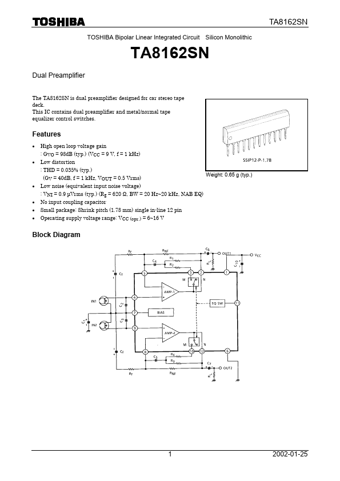

Additional preview pages of the TA8162SN datasheet.

High open loop voltage gain : GVO = 98dB (typ. ) (VCC = 9 V, f = 1 kHz).
Low distortion : THD = 0.035% (typ. ) (GV = 40dB, f = 1 kHz, VOUT = 0.5 Vrms) Weight: 0.65 g (typ. ).
Low noise (equivalent input noise voltage) : VNI = 0.9 µVrms (typ. ) (Rg = 620 Ω, BW = 20 Hz~20 kHz, NAB EQ).
No input coupling capacitor.
Small package: Shrink pitch (1.78 mm) single in-line 12 pin.
Operating supply voltage range: VCC (opr. ) = 6~16 V Block Diagram 1 2002-01-25 Applic.
