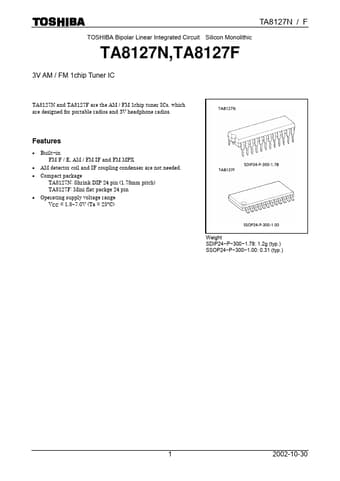

TA8127F, TA8127 - 3V AM/FM 1CHIP TUNER

Toshiba Semiconductor

Datasheet Details

Part number	TA8127F, TA8127
Manufacturer	Toshiba Semiconductor
File Size	1.34 MB
Description	3V AM/FM 1CHIP TUNER
Datasheet	TA8127_ToshibaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TA8127F, TA8127. Please refer to the document for exact specifications by model.

Built.
in FM F / E, AM / FM IF and FM MPX.
AM detector coil and IF coupling condenser are not needed.
Compact package TA8127N: Shrink DIP 24 pin (1.78mm pitch) TA8127F: Mini flat packge 24 pin.
Operating supply voltage range VCC = 1.8~7.0V (Ta = 25°C) Weight SDIP24.
P.
300.
1.78: 1.2g (typ. ) SSOP24.
P.
300.
1.00: 0.31 (typ. ) 1 2002-10-30 Block Diagram TA8127N / F 2 2002-10-30 Explanation Of Terminals Pin No. Item 1 FM-.
