TA78DL12F, TA78DL05F - (TA78DL05F - TA78DL15F) LOW DROPOUT VOLTAGE REGULATOR

Toshiba Semiconductor

Datasheet Details

Part number	TA78DL12F, TA78DL05F
Manufacturer	Toshiba Semiconductor
File Size	198.50 KB
Description	(TA78DL05F - TA78DL15F) LOW DROPOUT VOLTAGE REGULATOR

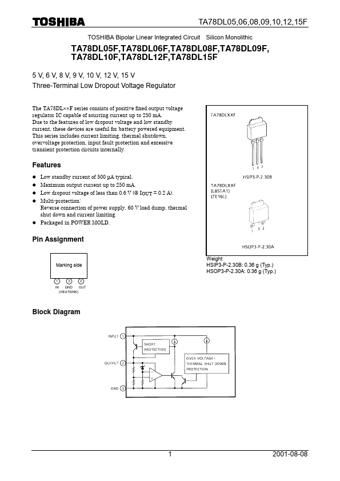

Datasheet	TA78DL05F_ToshibaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TA78DL12F, TA78DL05F. Please refer to the document for exact specifications by model.

of low dropout voltage and low standby current, these devices are useful for battery powered equipment. This series includes current limiting, thermal shutdown, overvoltage protection, input fault protection and excessive transient protection circuits internally. Features l Low standby current of 500 µA typical. l Maximum output current up to 250 mA. l Low dropout voltage of less than 0.6 V (@ IOUT = 0.2 A). l Multi-protection: Reverse connection of power supply, 60 V load dump, thermal shut dow.
