TA76432FR - 1.26V Adjustable High-Precision Shunt Regulators

Download the TA76432FR datasheet PDF. This datasheet also covers the TA76432F variant, as both devices belong to the same 1.26v adjustable high-precision shunt regulators family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Precision reference voltage: VREF = 1.26 V ± 1.4% (Ta = 25°C).
  • Small temperature coefficient: |αVREF| = 30 ppm/°C (typ. ).
  • Adjustable output voltage: VREF ≤ VOUT ≤ 19 V.
  • Minimum cathode current for regulation: Ikmin = 0.5 mA (max. ).
  • Operating temperature: Ta =.
  • 40 to 85°C.
  • The TA76432FT is housed in an ultra-thin UFV package. (thickness: 0.7 mm typ. ).
  • Packages: UFV (TA76432FT), SMV (TA76432FC), PW-Mini (TA76432F/FR) and LSTM.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TA76432F_ToshibaSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TA76432FR
Manufacturer Toshiba
File Size 313.12 KB
Description 1.26V Adjustable High-Precision Shunt Regulators
Datasheet download datasheet TA76432FR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TA76432AF 1.26V Adjustable High-Precision Shunt Regulators Toshiba
TA76432AFR 1.26V Adjustable High-Precision Shunt Regulators Toshiba
TA76432AFT 1.26V Adjustable High-Precision Shunt Regulators Toshiba
TA76432AS 1.26V Adjustable High-Precision Shunt Regulators Toshiba
TA7640 AM/FM IF PROCESSOR Unisonic Technologies

Other Datasheets by Toshiba

Part Number Description
TA76432F 1.26V Adjustable High-Precision Shunt Regulators
TA76432FC 1.26V Adjustable High-Precision Shunt Regulators
TA76432FT 1.26V Adjustable High-Precision Shunt Regulators
TA76432S 1.26V Adjustable High-Precision Shunt Regulators
TA76431AF ADJUSTABLE PRECISION SHUNT REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

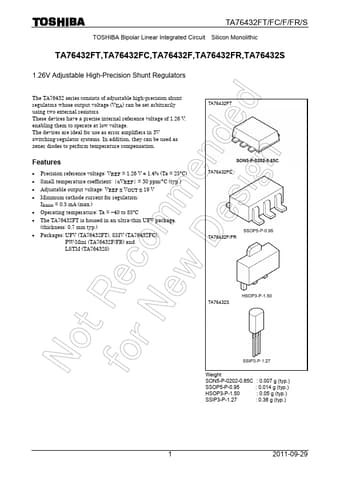

TA76432FT/FC/F/FR/S TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA76432FT,TA76432FC,TA76432F,TA76432FR,TA76432S 1.26V Adjustable High-Precision Shunt Regulators The TA76432 series consists of adjustable high-precision shunt regulators whose output voltage (VKA) can be set arbitrarily using two external resistors. These devices have a precise internal reference voltage of 1.26 V, enabling them to operate at low voltage. The devices are ideal for use as error amplifiers in 3V switching-regulator systems. In addition, they can be used as zener diodes to perform temperature compensation. Features • Precision reference voltage: VREF = 1.26 V ± 1.4% (Ta = 25°C) • Small temperature coefficient: |αVREF| = 30 ppm/°C (typ.
