Datasheet Specifications
- Part number
- TA76431S
- Manufacturer
- Toshiba ↗ Semiconductor
- File Size
- 347.71 KB
- Datasheet
- TA76431S_ToshibaSemiconductor.pdf
- Description
- ADJUSTABLE PRECISION SHUNT REGULATOR
Description

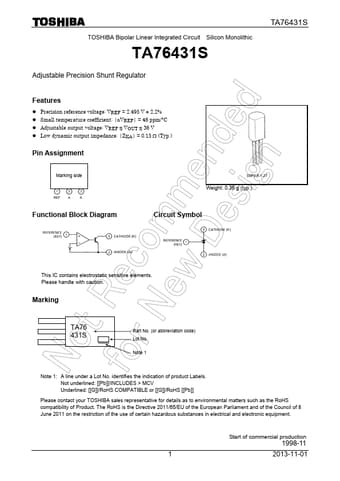

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA76431S Adjustable Precision Shunt Regulator TA76431S .
Features
* z Precision reference voltage: VREF = 2.495 V ± 2.2% z Small temperature coefficient: |αVREF| = 46 ppm/°C z Adjustable output voltage: VREF ≤ VOUT ≤ 36 V z Low dynamic output impedance: |ZKA| = 0.15 Ω (Typ. ) Pin Assignment Marking side 1 REF 2 A 3 K Functional Block Diagram Weight: 0.36 g (typApplications
* (1) 2.5 V reference (2) Shunt regulator 4 2013-11-01 TA76431S 5 2013-11-01 TA76431S 6 2013-11-01 Package Dimensions TA76431S 7 2013-11-01 TA76431S RESTRICTIONS ON PRODUCT USETA76431S Distributors
