K3934 2SK3934

K3934 Description

www.DataSheet4U.com 2SK3934 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (ƒÎ -MOSVI) 2SK3934 Switching Regulator Applications

K3934 Applications

* Low drain-source ON resistance: R DS (ON) = 0.23ƒ¶ (typ. ) High forward transfer admittance: |Yfs| =8.2 S (typ. ) Low leakage current: IDSS = 100 ƒÊ A (V DS = 500 V) Enhancement-mode: V th = 2.0~4.0 V (V DS = 10 V, ID = 1 mA) Unit: mm Maximum Ratings (Ta = 25°C

📥 Download Datasheet

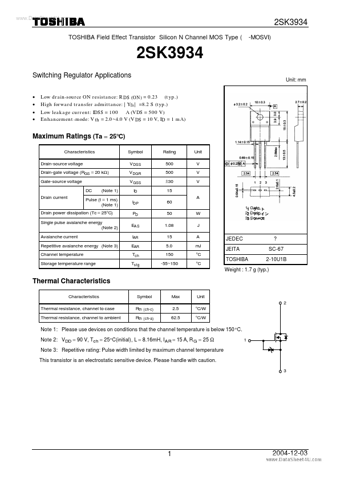

Preview of K3934 PDF
datasheet Preview Page 2 datasheet Preview Page 3
