K1119 2SK1119

K1119 Description

2SK1119 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π *MOSII.5) 2SK1119 DC *DC Converter and Motor Drive Applications .

K1119 Applications

* z Low drain
* source ON resistance : RDS (ON) = 3.0 Ω (typ. ) z High forward transfer admittance : |Yfs| = 2.0 S (typ. ) z Low leakage current : IDSS = 300 µA (max) (VDS = 800 V) z Enhancement mode : Vth = 1.5~3.5 V (VDS = 10 V, ID = 1 mA) Unit: mm Absolute Maximum Ratings (Ta = 25°C) C

📥 Download Datasheet

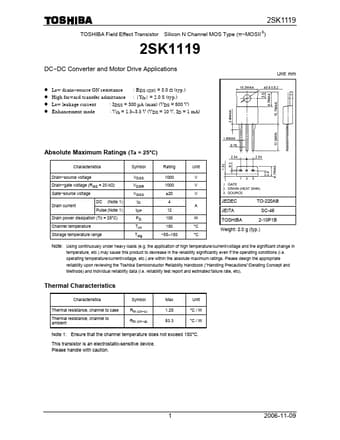

Preview of K1119 PDF
datasheet Preview Page 2 datasheet Preview Page 3
