Description

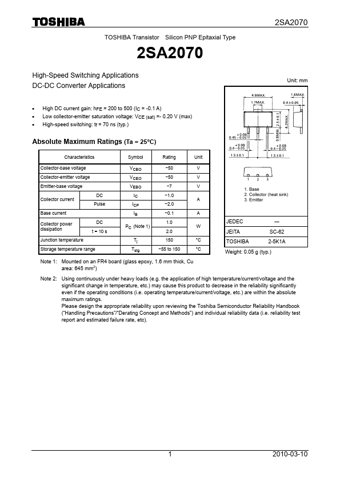

TOSHIBA Transistor Silicon PNP Epitaxial Type 2SA2070 High-Speed Switching Applications DC-DC Converter Applications 2SA2070 Unit: mm * High.

📥 Download Datasheet

Preview of A2070 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AN

Applications

* DC-DC Converter Applications 2SA2070 Unit: mm
* High DC current gain: hFE = 200 to 500 (IC = -0.1 A)
* Low collector-emitter saturation voltage: VCE (sat) =- 0.20 V (max)
* High-speed switching: tf = 70 ns (typ. ) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbo
