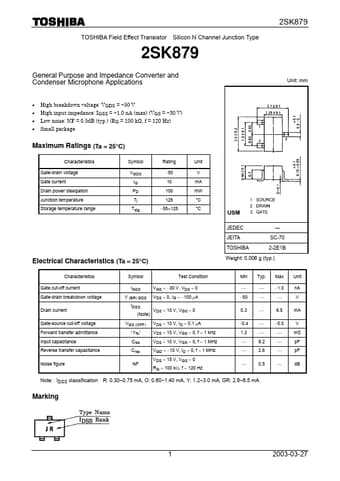

TOSHIBA Field Effect Transistor Silicon N Channel Junction Type
2SK879
General Purpose and Impedance Converter and Condenser Microphone Applications
2SK879
Unit: mm
· High breakdown voltage: VGDS = −50 V · High input impedance: IGSS = −1.0 nA (max) (VGS = −30 V) · Low noise: NF = 0.5dB (typ.) (RG = 100 kΩ, f = 120 Hz) · Small package
Maximum Ratings (Ta = 25°C)
Characteristics
Gate-drain voltage Gate current Drain power dissipation Junction temperature Storage temperature range
Symbol
VGDS IG PD Tj Tstg
Rating
-50 10 100 125 -55~125
Unit
V mA mW °C °C
Electrical Characteristics (Ta = 25°C)
JEDEC
―
JEITA
SC-70
TOSHIBA
2-2E1B
Weight: 0.006 g (typ.)
Characteristics
Symbol
Test Condition
Min Typ.
