2SK1358 - Silicon N-Channel MOSFET

Features

  • Low Drain-Source ON Resistance - RDS(ON) = 1.1Ω (Typ. ).
  • High Forward Transfer Admittance - Yfs = 4.0S (Typ. ).
  • Low Leakage Current - IDSS = 300µA (Max. ) @ VDS = 720V.
  • Enhancement-Mode - Vth = 1.5 ~ 3.5V @ VDS = 10V, ID = 1mA Absolute Maximum Ratings (Ta = 25°C).

📥 Download Datasheet

Datasheet Details

Part number 2SK1358
Manufacturer Toshiba
File Size 568.20 KB
Description Silicon N-Channel MOSFET
Datasheet download datasheet 2SK1358 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK1358 N-Channel MOSFET Transistor Inchange Semiconductor
2SK135 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1350 N-Channel MOSFET Transistor Inchange Semiconductor
2SK1351 N-Channel MOSFET Transistor Inchange Semiconductor
2SK1352 N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Toshiba

Part Number Description
2SK1359 Silicon N-Channel MOSFET
2SK1310 N-Channel MOSFET
2SK1310A N-Channel MOSFET
2SK1365 Silicon N-Channel MOSFET
2SK1381 Silicon N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

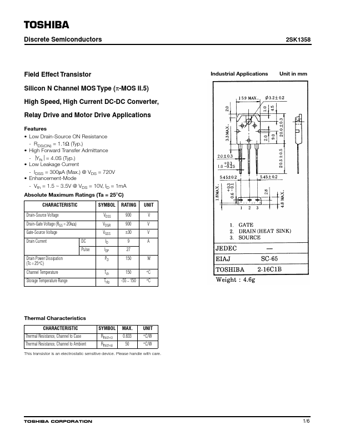

TOSHIBA Discrete Semiconductors Field Effect Transistor Silicon N Channel MOS Type (π-MOS II.5) High Speed, High Current DC-DC Converter, Relay Drive and Motor Drive Applications Features • Low Drain-Source ON Resistance - RDS(ON) = 1.1Ω (Typ.) • High Forward Transfer Admittance - Yfs = 4.0S (Typ.) • Low Leakage Current - IDSS = 300µA (Max.) @ VDS = 720V • Enhancement-Mode - Vth = 1.5 ~ 3.
