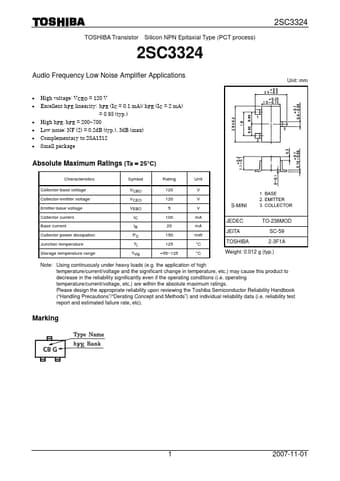

TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process)
2SC3324
2SC3324
Audio Frequency Low Noise Amplifier Applications
Unit: mm
• High voltage: VCEO = 120 V • Excellent hFE linearity: hFE (IC = 0.1 mA)/ hFE (IC = 2 mA)
= 0.95 (typ.) • High hFE: hFE = 200~700 • Low noise: NF (2) = 0.2dB (typ.), 3dB (max) • Complementary to 2SA1312 • Small package
Absolute Maximum Ratings (Ta = 25°C)
Characteristics
Symbol
Rating
Unit
Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range
VCBO VCEO VEBO
IC IB PC Tj Tstg
120 120
5 100 20 150 125 −55~125
V V V mA mA mW °C °C
JEDEC
TO-236MOD
JEITA
SC-59
TOSHIBA
2-3F1A
Weight: 0.012 g (typ.
