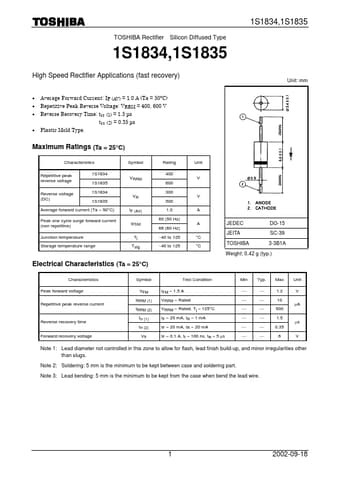

TOSHIBA Rectifier Silicon Diffused Type
1S1834,1S1835
1S1834,1S1835
High Speed Rectifier Applications (fast recovery)
Unit: mm
· Average Forward Current: IF (AV) = 1.0 A (Ta = 50°C) · Repetitive Peak Reverse Voltage: VRRM = 400, 600 V · Reverse Recovery Time: trr (1) = 1.5 µs
trr (2) = 0.35 µs · Plastic Mold Type.
Maximum Ratings (Ta = 25°C)
Characteristics
Repetitive peak reverse voltage
1S1834 1S1835
Reverse voltage (DC)
1S1834 1S1835
Average forward current (Ta = 50°C)
Peak one cycle surge forward current (non repetitive)
Junction temperature Storage temperature range
Symbol
VRRM
VR IF (AV) IFSM
Tj Tstg
Rating
400 600 300 500 1.
