ET1103 Datasheet (Torquemeters) - Medium Speed Torquemeter

ET1103, Medium Speed Torquemeter

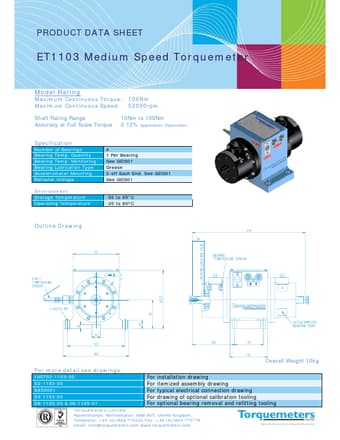

PRODUCT DATA SHEET ET1103 Medium Speed Torquemeter Model Rating Maximum Continuous Torque: 100Nm Maximum Continuous Speed: 52000rpm Shaft Rating Range 10Nm to 100Nm Accuracy at Full Scale Torque 0.12% Application Dependant Specification Number of Bearings Bearing Temp.

Quantity Bearing Temp.

Monitoring Bearing Lubrication Type Accelerometer Mounting Rotastat Voltage Environment Storage Temperature Operating Temperature 4 1 Per Bearing See GDS01 Grease 2-off Each End.

See GDS01 See GDS01 -5
