XC6192B - Power saving Push Button Load switch

Product Overview

Torex

Part number	XC6192B
Manufacturer	Torex
File Size	617.54 KB
Description	Power saving Push Button Load switch
Datasheet	XC6192B Datasheet
Note	This datasheet PDF includes multiple part numbers: XC6192B, XC6192. Please refer to the document for exact specifications by model.

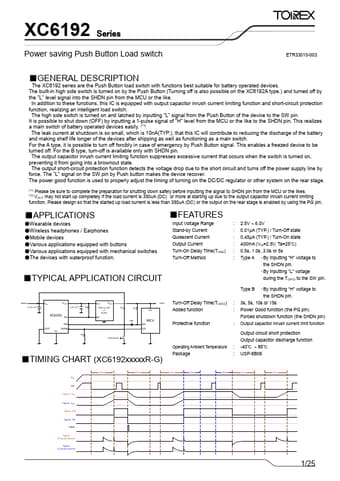

Additional preview pages of the XC6192B datasheet.

The XC6192 series are the Push Button load switch with functions best suitable for battery operated devices.

Input Voltage Range Stand-by Current Quiescent Current Output Current Turn-On Delay Time(TOND) Turn-Off Method : 2.5V ~ 6.0V : 0.01μA (TYP. ) / Turn-Off state : 0.45μA (TYP. ) / Turn-On state : 400mA (VIN=2.5V, Ta=25℃) : 0.5s, 1.0s, 3.0s or 5s : Type A By inputting “H” voltage to the SHDN pin. By inputting “L” voltage during the TOFFD to the SW pin. Battery CIN=0.1μF VIN VOUT CL=0.1μF R2 XC6192 PG SW TEST SHDN VSS R3 VDD VOUT PMIC or LDO or DC/DC EN R1 R4 Other VIN SBD MCU I.
