XC9508, Synchronous Step-Down DC/DC Converter

The XC9508 series consists of a step-down DC/DC converter and a high-speed LDO regulator connected in series with the DC/DC converter's output.

A voltage detector is also built-in.

A highly efficient, low noise output is possible since the regulator is stepped-down further from the DC/DC output.

The

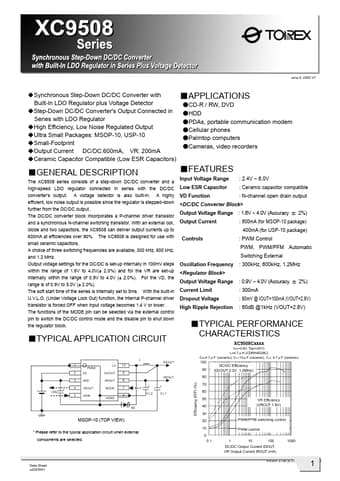

June 9, 2005 V7 Synchronous Step-Down DC/DC Converter with Built-In LDO Regulator plus Voltage Detector Step-Down DC/DC Converter's Output Connected in Series with LDO Regulator High Efficiency, Low Noise Regulated Output Ultra Small Packages: MSOP-10, USP-10 Small-Footprint Output Current DC/DC:600mA, VR: 200mA Ceramic Capacitor Compatible (Low ESR Capacitors) APPLICATIONS CD-R / RW, DVD HDD PDAs, portable communication modem Cellula

XC9508 Features

* Input Voltage Range Low ESR Capacitor VD Function Output Voltage Range Output Current Controls : 2.4V ~ 6.0V : Ceramic capacitor compatible : N-channel open drain output : 1.6V ~ 4.0V (Accuracy ± 2%) : 600mA (for MSOP-10 package) 400mA (for USP-10 package) : PWM Control PWM, PWM/PFM Automatic Switch
