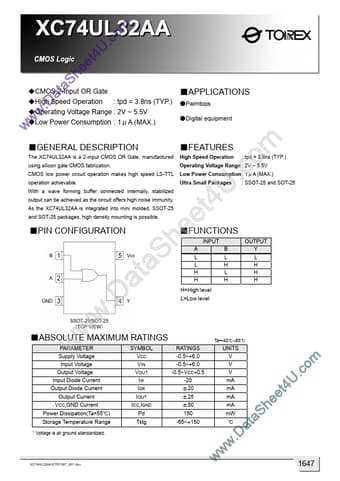

XC74UL32AA Datasheet (Torex Semiconductor)

XC74UL32AA, CMOS Logic

The XC74UL32AA is a 2-input CMOS OR Gate, manufactured using silicon gate CMOS fabrication.

CMOS low power circuit operation makes high speed LS-TTL operation achievable.

With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immunity.

XC74UL32AA Features

* High Speed Operation Operating Voltage Range : 2V ~ 5.5V Ultra Small Packages Low Power Consumption : 1μA (MAX.)

* PIN CONFIGURATION

* ABSOLUTE MAXIMUM RATINGS PARAMETER Supply Voltage Input Voltage Output Voltage Input Diode Current Output Diode Current Output Current VCC,GND Current Powe
