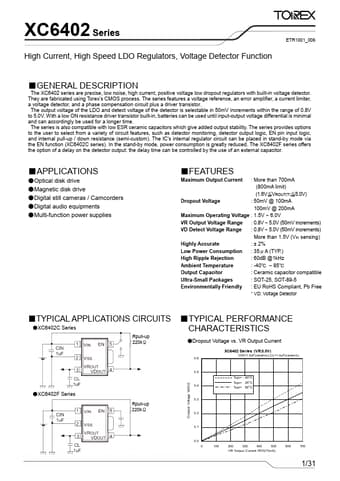

XC6402 - High Speed LDO Regulators

Torex Semiconductor

Datasheet Details

The XC6402 series are precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector.

Maximum Output Current : More than 700mA (800mA limit) (1.6V≦VROUT(T)≦5.0V) Dropout Voltage : 50mV @ 100mA 100mV @ 200mA Maximum Operating Voltage : 1.5V ~ 6.0V VR Output Voltage Range : 0.8V ~ 5.0V (50mV increments) VD Detect Voltage Range : 0.8V ~ 5.0V (50mV increments) More than 1.5V (VIN sensing) Highly Accurate : ± 2% Low Power Consumption : 35μA (TYP. ) High Ripple Rejection : 60dB @1kHz Ambient Temperature : -40℃ ~ 85℃ Output Capacitor : Ceramic capacitor compatible Ultr.
