XC2300 - Tri-State Buffer ICs

XC2300 Description

*CMOS Low Power Consumption *Maximum Operating Frequency : 70MHz *Built-In Input Amplifier *3-State Output *Divider Circuit *M.
The 2300 Series are a group of high frequency, CMOS low power tri-state buffer ICs with input amplifier, divider and output tri-state buffer circuits.

XC2300 Features

* Max. Operating Frequency Operating Voltage Range Divider Ratio Output Ultra Small Package : 70MHz : 3.3V±10%, 5.0V±20% : fin/1 : 3-State : SOT-26 www. DataSheet4U. com
* PIN CONFIGURATION
* PIN ASSIGNMENT PIN NUMBER 1 2 3 4 5 6 PIN NAME /INH XT VSS Q0 VDD /XT FUNCTION Stand-by Control (
* )

XC2300 Applications

* VCXO modules
* Crystal oscillator modules

📥 Download Datasheet

Preview of XC2300 PDF

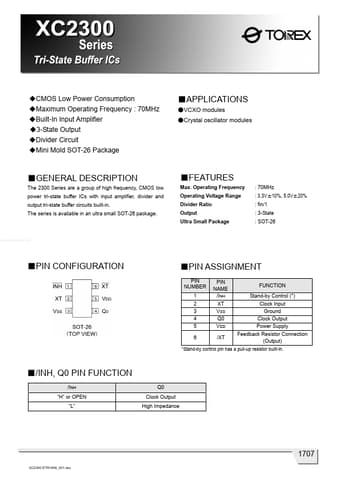

datasheet Preview Page 2 datasheet Preview Page 3
