TMC500A, TMC200A Current Transducer

TMC500A Description

Topstek Current Transducer TMC200A ..TMC1500A TMC 200A~1500A .

TMC500A Features

* Highly reliable Hall Effect device
* Compact and light weight
* Fast response time
* Excellent linearity of the output voltage over a wide input range
* Excellent frequency response (> 50 kHz)
* Low power consumption (12 mA nominal)
* Capable

TMC500A Applications

* UPS systems
* Industrial robots
* NC tooling machines
* Elevator controllers
* Process control devices
* AC and DC servo systems
* Motor speed controller
* Electrical vehicle controllers
* Inverter-controlled welding machines

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMC500A, TMC200A. Please refer to the document for exact specifications by model.

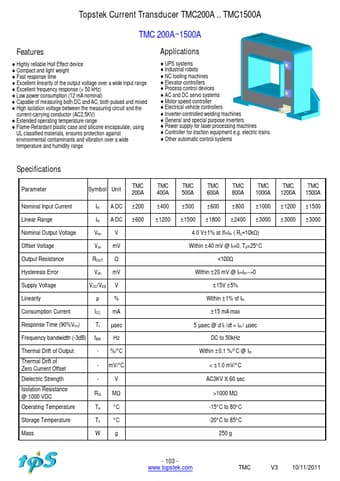

datasheet Preview Page 2

Datasheet Details

Part number
TMC500A, TMC200A
Manufacturer
Topstek
File Size
215.12 KB
Datasheet
TMC200A-Topstek.pdf
Description
Current Transducer
Note
This datasheet PDF includes multiple part numbers: TMC500A, TMC200A.
Please refer to the document for exact specifications by model.
