SOT23 Datasheet - TopLine

SOT23 JEDEC TO-236AB Package

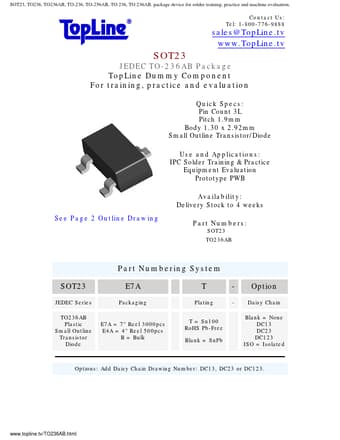

SOT23, TO236, TO236AB, TO-236, TO-256AB, TO 236, TO 236AB. package device for solder training, practice and machine evaluation. Contact Us: Tel: 1-800-776-9888 sales@TopLine.tv www.TopLine.tv SOT23 JEDEC TO-236AB Package TopLine Dummy Component For training, practice and evaluation Quick Specs: Pin Count 3L Pitch 1.9mm Body 1.30 x 2.92mm Small Outline Transistor/Diode Use and Applications: IPC Solder Training & Practice Equipment Evaluation Prototype PWB See Page 2 Outline Drawing Availabili.

SOT23 Datasheet (45.42 KB)

Preview of SOT23 PDF
SOT23 Datasheet Preview Page 2 SOT23 Datasheet Preview Page 3

Datasheet Details

Part number:

SOT23

Manufacturer:

TopLine

File Size:

45.42 KB

Description:

Jedec to-236ab package.
