TPU3316DHP, TPU1813DHP - High Current Power Inductors

TPU3316DHP Description

* Product Introduction Token's Power Inductors utilize wire wound technology enabling up to 30A high current..

TPU3316DHP Features

* :
* Miniature surface mount design.
* Very low resistance. Maximum power density.

TPU3316DHP Applications

* :
* Personable computers, DC/DC Converters.
* LCD televisions, Power supply for VTRs. Token SMD unshielded (TPUDHP) series utilize wire wound technology with open magnetic circuit construction enabling cost-effective in manufacturing high rated current, low ohmic resistance products. The pow

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPU3316DHP, TPU1813DHP. Please refer to the document for exact specifications by model.

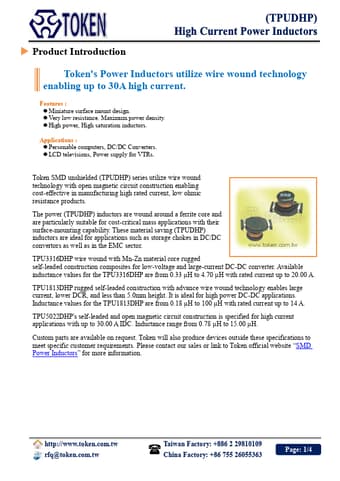

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPU3316DHP, TPU1813DHP
Manufacturer
Token
File Size
261.07 KB
Datasheet
TPU1813DHP-Token.pdf
Description
High Current Power Inductors
Note
This datasheet PDF includes multiple part numbers: TPU3316DHP, TPU1813DHP.
Please refer to the document for exact specifications by model.
