TDS1I2C1 - Mini I2C Board

Name: TDS1I2C1
SKU: TDS1I2C1-792241

Tiertex

The TDS1I2C1 by Tiertex is a Mini I2C Board. Below is the official datasheet preview.

Datasheet Details

Part number	TDS1I2C1
Manufacturer	Tiertex
File Size	932.14 KB
Description	Mini I2C Board
Datasheet	TDS1I2C1-Tiertex.pdf

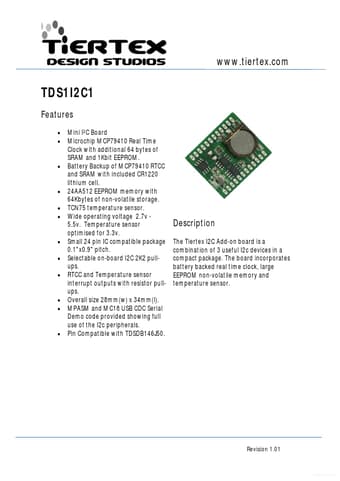

Additional preview pages of the TDS1I2C1 datasheet.

The Tiertex I2C Add-on board is a combination of 3 useful I2c devices in a compact package.

Mini I²C Board Microchip MCP79410 Real Time Clock with additional 64 bytes of SRAM and 1Kbit EEPROM. Battery Backup of MCP79410 RTCC and SRAM with included CR1220 lithium cell. 24AA512 EEPROM memory with 64Kbytes of non-volatile storage. TCN75 temperature sensor. Wide operating voltage 2.7v 5.5v. Temperature sensor optimised for 3.3v. Small 24 pin IC compatible package 0.1"x0.9" pitch. Selectable on-board I2C 2K2 pullu.
