U30D60C, U30D20C - 30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers

Name: U30D60C
SKU: U30D60C-813116

Thinki Semiconductor

The U30D60C by Thinki Semiconductor is a 30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

U30D60C 30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers by Thinki Semiconductor - Datasheet Preview — Official preview page of the **U30D60C** 30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers datasheet (Thinki Semiconductor).

Datasheet Details

Part number	U30D60C, U30D20C
Manufacturer	Thinki Semiconductor
File Size	526.72 KB
Description	30.0 Ampere Dual Common Cathode Ultra Fast Recovery Rectifiers
Datasheet	U30D20C-ThinkiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: U30D60C, U30D20C. Please refer to the document for exact specifications by model.

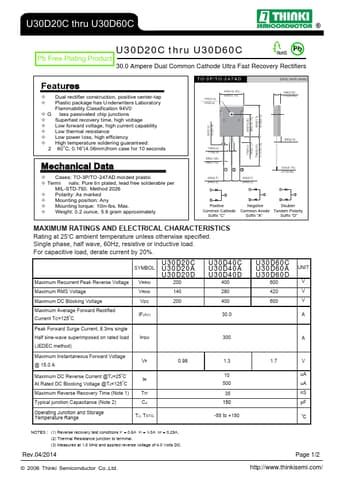

Additional preview pages of the U30D60C datasheet.

U30D60C Product details

Features

Dual rectifier construction, positive center-tap Plastic package has U nderwriters Laborat ory Flammability Classification 94V0 G lass passivated chip junctions Superfast recovery time, high voltage Low forward voltage, high current capability Low thermal resistance Low power loss, high efficiency High temperature soldering guaranteed: o 2 60 C, 0.16”(4.06mm)from case for 10 seconds .640(16.25) .620(15.75) .142(3.6) .125(3.2) .199(5.05) .175(4.45) .087(2.2) .070(1.8) .600(15.25) .580(14.75) .
