TSF10N60C - 600V Insulated N-Channel Type Power MOSFET

Thinki Semiconductor

The TSF10N60C by Thinki Semiconductor is a 600V Insulated N-Channel Type Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

TSF10N60C 600V Insulated N-Channel Type Power MOSFET by Thinki Semiconductor - Datasheet Preview — Official preview page of the **TSF10N60C** 600V Insulated N-Channel Type Power MOSFET datasheet (Thinki Semiconductor).

Datasheet Details

Part number	TSF10N60C
Manufacturer	Thinki Semiconductor
File Size	1.14 MB
Description	600V Insulated N-Channel Type Power MOSFET
Datasheet	TSF10N60C-ThinkiSemiconductor.pdf

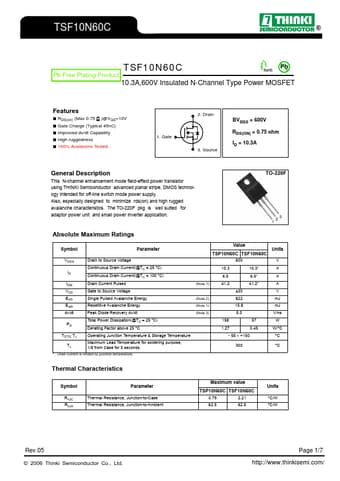

Additional preview pages of the TSF10N60C datasheet.

TSF10N60C Product details

Description

This N-channel enhancement mode field-effect power transistor using THINKI Semiconductor advanced planar stripe, DMOS technology intended for off-line switch mode power supply.

Features

RDS(on) (Max 0.75 Ω )@VGS=10V.
Gate Charge (Typical 45nC).
Improved dv/dt Capability.
High ruggedness.
100% Avalanche Tested 1. Gate { { 2. Drain.
◀▲.
{ 3. Source BVDSS = 600V RDS(ON) = 0.75 ohm ID = 10.3A General.
