SF2001GD - (SF2001GD - SF2008GD) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode

This page provides the datasheet information for the SF2001GD, a member of the SF2001G (SF2001GD - SF2008GD) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode family.

Datasheet Summary

Features

  • Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .269(6.85) .226(5.75) ¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability ¬ Case: TO-220AB Heatsink ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity: As marked on body ¬ Mounting position: Any ¬ Weight: 2.24 gram approximately .624(15.87) .50(12.7)MIN .038(0.96) .019(0.50) .177(4.5.

📥 Download Datasheet

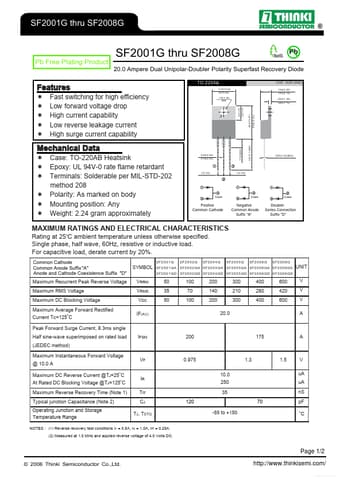

Datasheet preview – SF2001GD
