MUR840H - 8.0 Ampere Ultra Fast Rectifiers

Download the MUR840H datasheet PDF. This datasheet also covers the MUR820H variant, as both devices belong to the same 8.0 ampere ultra fast rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • ¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability TO-220AC Unit : inch (mm) Mechanical Data ¬ Case: Molded TO-220AC ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:Color band denotes cathode ¬ Mounting position: Any ¬ Weight: 2.03 gram approximately 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MUR820H-ThinkiSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MUR840H
Manufacturer Thinki Semiconductor
File Size 627.25 KB
Description 8.0 Ampere Ultra Fast Rectifiers
Datasheet download datasheet MUR840H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MUR840 GLASS PASSIVATED SUPER FAST RECTIFIER JINAN JINGHENG ELECTRONICS
MUR840 Glass passivated super fast rectifier First Silicon
MUR840 8 AMP ULTRA FAST RECTIFIER Digitron Semiconductors
MUR840 Ultrafast Recovery Rectifier Inchange Semiconductor
MUR840 (MUR805 - MUR860) SWITCHMODE Power Rectifiers ON Semiconductor

Other Datasheets by Thinki Semiconductor

Part Number Description
MUR840CTR 8 Ampere Heatsink Dual Common Anode Fast Recovery Half Bridge Rectifiers
MUR8020PT Ultra Fast Recovery Rectifiers
MUR8040PT Common Cathode Fast Recovery Epitaxial Diode
MUR8120 SwitchMode Single Fast Recovery Epitaxial Diode
MUR820CTR 8 Ampere Heatsink Dual Common Anode Fast Recovery Half Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

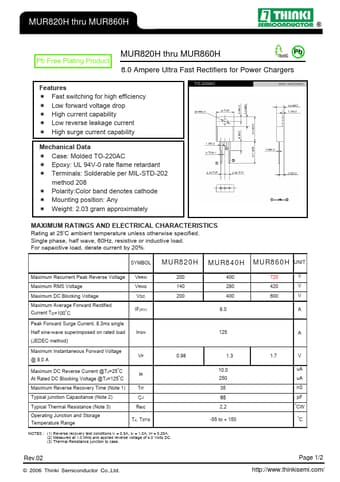

MUR820H thru MUR860H ® Pb Free Plating Product MUR820H thru MUR860H Pb 8.0 Ampere Ultra Fast Rectifiers for Power Chargers Features ¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability TO-220AC Unit : inch (mm) Mechanical Data ¬ Case: Molded TO-220AC ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:Color band denotes cathode ¬ Mounting position: Any ¬ Weight: 2.03 gram approximately 2 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25oC ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
