MUR3060PA, MUR3005PT - 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes

Name: MUR3060PA
SKU: MUR3060PA-763644

Thinki Semiconductor

The MUR3060PA by Thinki Semiconductor is a 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes. Below is the official datasheet preview.

📥 Download Datasheet

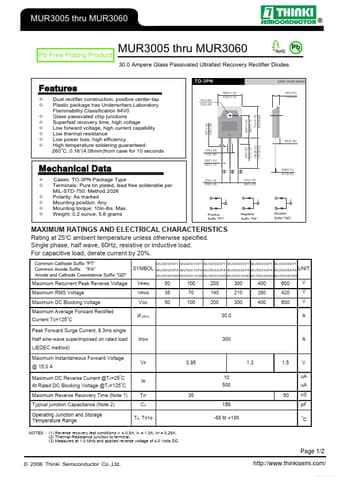

MUR3060PA 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes by Thinki Semiconductor - Datasheet Preview — Official preview page of the **MUR3060PA** 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes datasheet (Thinki Semiconductor).

Datasheet Details

Part number	MUR3060PA, MUR3005PT
Manufacturer	Thinki Semiconductor
File Size	731.70 KB
Description	30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes
Datasheet	MUR3005PT_ThinkiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MUR3060PA, MUR3005PT. Please refer to the document for exact specifications by model.
Additional preview pages of the MUR3060PA datasheet.

MUR3060PA Product details

Features

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classification 94V0 Glass passivated chip junctions Superfast recovery time, high voltage Low forward voltage, high current capability Low thermal resistance Low power loss, high efficiency High temperature soldering guaranteed: o 260 C, 0.16”(4.06mm)from case for 10 seconds .142(3.60) .125(3.20) .087(2.20) .070(1.80) .600(15.25) .580(14.75) .776(19.70) .819(20.80) .095(2.40) .126(3.20).
