MUR3010PA, MUR3005PT - 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes

Thinki Semiconductor

Datasheet Details

Part number	MUR3010PA, MUR3005PT
Manufacturer	Thinki Semiconductor
File Size	731.70 KB
Description	30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes

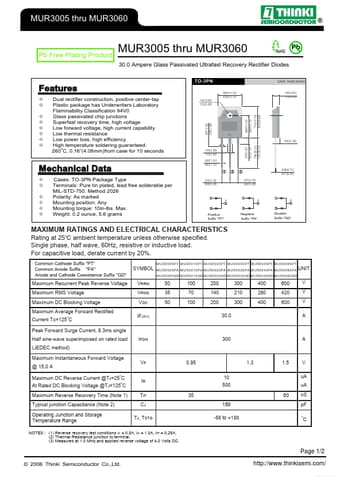

Datasheet	MUR3005PT_ThinkiSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MUR3010PA, MUR3005PT. Please refer to the document for exact specifications by model.

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classification 94V0 Glass passivated chip junctions Superfast recovery time, high voltage Low forward voltage, high current capability Low thermal resistance Low power loss, high efficiency High temperature soldering guaranteed: o 260 C, 0.16”(4.06mm)from case for 10 seconds .142(3.60) .125(3.20) .087(2.20) .070(1.80) .600(15.25) .580(14.75) .776(19.70) .819(20.80) .095(2.40) .126(3.20).
