MUR1010E, MUR1005CT 10.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier

MUR1010E Description

MUR1005 thru MUR1060 Pb ® Pb Free Plating Product MUR1005 thru MUR1060 TO-220AB .419(10.66) .387(9.85) .139(3.55) MIN 10.0 Ampere Heatsink Glass P.

MUR1010E Features

* ¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability Mechanical Data ¬ Case:TO-220AB Heatsink Package ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUR1010E, MUR1005CT. Please refer to the document for exact specifications by model.

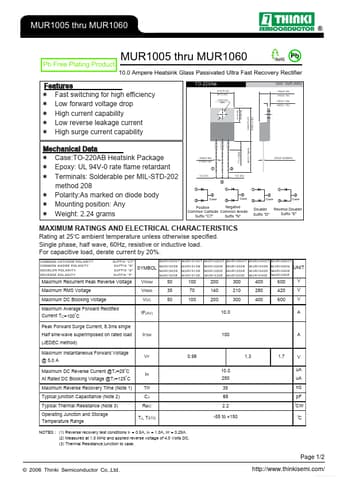

datasheet Preview Page 2

Datasheet Details

Part number
MUR1010E, MUR1005CT
Manufacturer
Thinki Semiconductor
File Size
636.63 KB
Datasheet
MUR1005CT_ThinkiSemiconductor.pdf
Description
10.0 Ampere Heatsink Glass Passivated Ultra Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: MUR1010E, MUR1005CT.
Please refer to the document for exact specifications by model.
