73M1866B - MicroDAA

General Description

The 73M1866B and 73M1966B use the Teridian patented Data Access Arrangement function (MicroDAA®) designed exclusively for ForeignExchange-Office (FXO) in Voice-over-IP (VoIP) applications.

Key Features

  • PCM highway data interface supporting both slave and master modes.
  • PCM highway interface supporting both E-1 and T-1.
  • SPI control interface, with daisy chain support for up to 16 devices.
  • Designed to meet global DAA compliance FCC, ETSI ES 203 021-2, JATE and other PTT standards.
  • 8 kHz and 16 kHz sample rates.
  • 16-bit linear mode.
  • TX and RX gains adjustable in 0.125 dB increments.
  • μ-Law, A-law ITU-T Recommendation G.711 com.

📥 Download Datasheet

Datasheet Details

Part number 73M1866B
Manufacturer Teridian Semiconductor
File Size 1.08 MB
Description MicroDAA
Datasheet download datasheet 73M1866B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
73M1903 Modem Analog Front End TDK Semiconductor
73M223 1200 Baud FSK Modem ETC
73M223-CL 1200 Baud FSK Modem ETC
73M223-CP 1200 Baud FSK Modem ETC
73M2901CL V.22bis Single Chip Modem TDK

Other Datasheets by Teridian Semiconductor

Part Number Description
73M1903 Modem Analog Front-End
73M1903C Modem Analog Front End
73M1966B MicroDAA
73M2901CE V.22bis Single Chip Modem

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

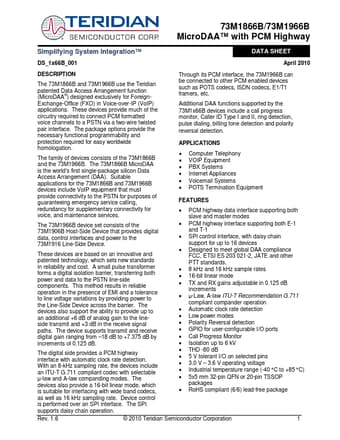

73M1866B/73M1966B MicroDAA™ with PCM Highway Simplifying System Integration™ DATA SHEET DS_1x66B_001 April 2010 DESCRIPTION The 73M1866B and 73M1966B use the Teridian patented Data Access Arrangement function (MicroDAA®) designed exclusively for ForeignExchange-Office (FXO) in Voice-over-IP (VoIP) applications. These devices provide much of the circuitry required to connect PCM formatted voice channels to a PSTN via a two-wire twisted pair interface. The package options provide the necessary functional programmability and protection required for easy worldwide homologation. The family of devices consists of the 73M1866B and the 73M1966B. The 73M1866B MicroDAA is the world’s first single-package silicon Data Access Arrangement (DAA).
