TF2110 - (TF2110 / TF2113) High-Side / Low-Side Gate Drivers

TF2110 Description

TF2110 / TF2113 .
The TF2110 and TF2113 are high voltage, high-speed MOSFET and IGBT drivers with independent high-side and low-side outputs.

TF2110 Features

* D  rive two N-channel MOSFETs or IGBTs in high-side / low side configuration
* T  he floating high-side, drivers drive gates operating at up to 500V / 600V
* 2.5A sink / 2.5A source typical output currents
* Outputs tolerant to negative transients
* Wide gate driver supply vo

TF2110 Applications

* DC-DC Converters
* AC-DC Inverters
* Motor Controls
* Class D Power Amplifiers Up to 500V / 600V PDIP-14 SOIC-16W year year Week Week Ordering Information PART NUMBER TF2110-3BS TF2110-TEU TF2110-TEH TF2113-3BS TF2113-TEU TF2113-TEH TO LOAD VCC COM LO Typical Application HO P

📥 Download Datasheet

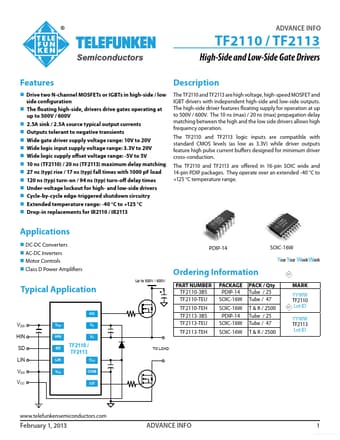

Preview of TF2110 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TF2110
Manufacturer
Telefunken
File Size
567.38 KB
Datasheet
TF2110-Telefunken.pdf
Description
(TF2110 / TF2113) High-Side / Low-Side Gate Drivers
