AC2091 - (AC2091 / AC2092) 30 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS

Download the AC2091 datasheet PDF. This datasheet also covers the AC2092 variant, as both devices belong to the same (ac2091 / ac2092) 30 to 2000 mhz to-8 cascadable amplifiers family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AC2092_Teledyne.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AC2091
Manufacturer Teledyne
File Size 115.75 KB
Description (AC2091 / AC2092) 30 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS
Datasheet download datasheet AC2091 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AC209N AC209N ETC
AC20 Cemented wirewound resistors NXP Semiconductors
AC20 Axial Coated Inductors Allied Components International
AC20-100K-RC Axial Coated Inductors Allied Components International
AC20-101K-RC Axial Coated Inductors Allied Components International

Other Datasheets by Teledyne

Part Number Description
AC2092 (AC2091 / AC2092) 30 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS
AC2023 TO-8 CASCADABLE AMPLIFIERS
AC2025 TO-8 CASCADABLE AMPLIFIERS
AC2066 TO-8 CASCADABLE AMPLIFIER
AC2088 TO-8 CASCADABLE AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

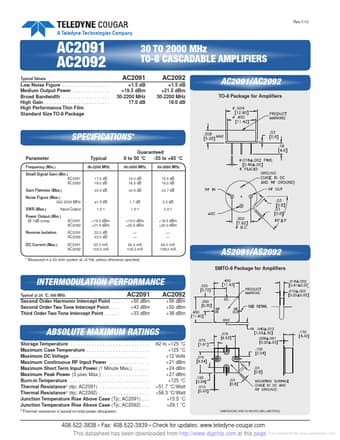

Rev.7/10 AC2091 AC2092 Typical Values 30 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS AC2091 <1.5 dB +19.5 dBm 30-2200 MHz 17.0 dB AC2092 <1.5 dB +21.5 dBm 30-2200 MHz 18.0 dB Low Noise Figure . . . . . . . . . . . . . . . . . . Medium Output Power . . . . . . . . . . . . . . Broad Bandwidth . . . . . . . . . . . . . . . . . . High Gain . . . . . . . . . . . . . . . . . . . . . . . . . High Performance Thin Film Standard Size TO-8 Package AC2091/AC2092 TO-8 Package for Amplifiers SPECIFICATIONS* Parameter Frequency (Min.) Small Signal Gain (Min.) AC2091 AC2092 Gain Flatness (Max.) Noise Figure (Max.) 300-2000 MHz SWR (Max.) Input/Output AC2091 AC2092 AC2091 AC2092 AC2091 AC2092 Typical 30-2200 MHz 17.0 dB 18.0 dB ±0.4 dB <1.5 dB 1.5:1 +19.5 dBm +21.5 dBm 22.0 dB 23.0 dB 60.0 mA 100.
