136C - Established Reliability / Military Relay

Teledyne

The 136C by Teledyne is a Established Reliability / Military Relay. Below is the official datasheet preview.

📥 Download Datasheet

136C Established Reliability / Military Relay by Teledyne - Datasheet Preview — Official preview page of the **136C** Established Reliability / Military Relay datasheet (Teledyne).

Datasheet Details

Part number	136C
Manufacturer	Teledyne
File Size	606.43 KB
Description	Established Reliability / Military Relay
Datasheet	136C-Teledyne.pdf

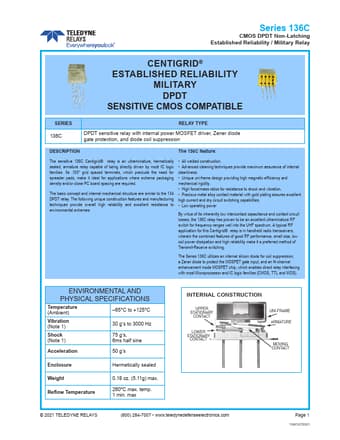

Additional preview pages of the 136C datasheet.

136C Product details

Description

The 136C feature: The sensitive 136C Centigrid® relay is an ultraminiature, hermetically sealed, armature relay capable of being directly driven by most IC logic families.Its .100” grid spaced terminals, which preclude the need for spreader pads, make it ideal for applications where extreme packaging density and/or close PC board spacing are required.The basic concept and internal mechanical structure are similar to the 134 DPDT relay.The following unique construction

Features

and manufacturing techniques provide overall high reliability and excellent resistance to environmental extremes:.
All welded construction.
Advanced cleaning techniques provide maximum assurance of internal cleanliness.
Unique uni-frame design providing high magnetic efficiency and mechanical rigidity.
High force/mass ratios for resistance to shock and vibration.
Precious metal alloy contact material with gold plating assures excellent high curre.
