TC38C43 - BiCMOS CURRENT MODE PWM CONTROLLERS

Description

The TC38C43 is a current mode BiCMOS PWM control IC.

With a low 1.0 mA supply current along with high drive current (0.7A peak) it provides a low cost solution for a PWM that operates to 500 kHz and directly drives MOSFETs up to HEX 3 size.

Features

  • s s s s s s s s s s s s s s Low Power BiCMOS Design Tough CMOSTM Construction Low Supply Current 1.0mA Typ @ 100kHz Wide Supply Voltage Operation 8V to 15V Latch-Up Immunity 500mA on Outputs Input Will Withstand Negative Inputs to.
  • 5 Volts High Output Drive 0.7A Peak (1.2A on 14-Pin and 16-Pin Versions) 2 kV ESD Protection Current Mode Control Fast Rise/Fall Time (Max) 60nsec @ 1000pF High Frequency Operation 500kHz Clock Ramp Reset Current 2.5mA ±10% Low Propagation Delay Current.

📥 Download Datasheet

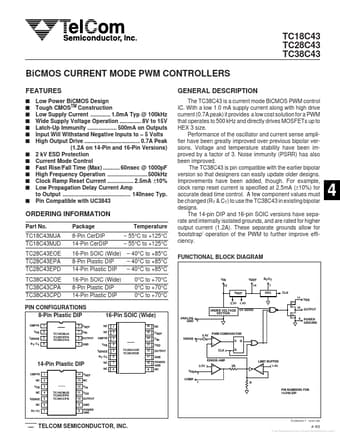

Datasheet preview – TC38C43

Datasheet Details

Part number TC38C43
Manufacturer TelCom
File Size 86.45 KB
Description BiCMOS CURRENT MODE PWM CONTROLLERS
Datasheet download datasheet TC38C43 Datasheet
Additional preview pages of the TC38C43 datasheet.

📁 Similar Datasheet

  • TC38C46 - CMOS CURRENT MODE PWM CONTROLLER (Teledyne)
  • TC38C47 - (TC38C46 / TC38C47) CMOS CURRENT MODE PWM CONTROLLER (Teledyne)
  • TC3827 - Lithium-Ion Battery Charger (Microchip)
  • TC387 - 32-Bit Microcontroller (Infineon)
  • TC3873 - 5.25 - 5.875 GHz 3W prematched FETs (Transcom)
  • TC3879 - 7W Packaged Single-Bias PHEMT GaAs Power FETs (Transcom)
  • TC3889 - 5W Packaged Self-Bias PHEMT GaAs Power FETs (Transcom)
  • TC389 - 32-Bit Microcontroller (Infineon)
  • TC301D - touch sensor (Nutech)
  • TC303 - POWER NAND GATES (ETC)
Other Datasheets by TelCom
  • TC38C46 - CMOS CURRENT MODE PWM CONTROLLER

Full PDF Text Transcription

Click to expand full text
TC18C43 TC28C43 TC38C43 BiCMOS CURRENT MODE PWM CONTROLLERS FEATURES s s s s s s s s s s s s s s Low Power BiCMOS Design Tough CMOSTM Construction Low Supply Current ............. 1.0mA Typ @ 100kHz Wide Supply Voltage Operation .............. 8V to 15V Latch-Up Immunity ................... 500mA on Outputs Input Will Withstand Negative Inputs to – 5 Volts High Output Drive .................................... 0.7A Peak (1.2A on 14-Pin and 16-Pin Versions) 2 kV ESD Protection Current Mode Control Fast Rise/Fall Time (Max) ........... 60nsec @ 1000pF High Frequency Operation ..........................500kHz Clock Ramp Reset Current ................. 2.5mA ±10% Low Propagation Delay Current Amp to Output ............................................ 140nsec Typ.
