TCL1117-3.30 - 800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V

TelCom Semiconductor

Datasheet Details

Part number	TCL1117-3.30
Manufacturer	TelCom Semiconductor
File Size	121.04 KB
Description	800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V

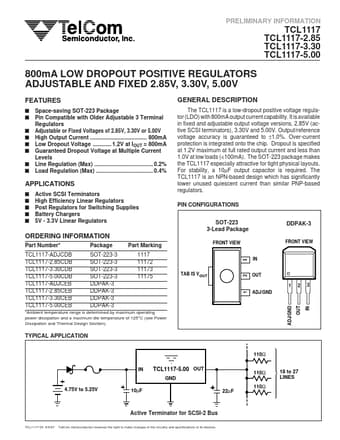

Datasheet	TCL1117-3.30_TelComSemiconductorInc.pdf

The TCL1117 is a low-dropout positive voltage regulator (LDO) with 800mA output current capability.

s s s s s s s s Space-saving SOT-223 Package Pin Compatible with Older Adjustable 3 Terminal Regulators Adjustable or Fixed Voltages of 2.85V, 3.30V or 5.00V High Output Current 800mA Low Dropout Voltage 1.2V at IOUT = 800mA Guaranteed Dropout Voltage at Multiple Current Levels Line Regulation (Max) 0.2% Load Regulation (Max) 0.4%.
