TC1027 - QUAD LOW POWER COMPARATOR AND VOLTAGE REFERENCE

Name: TC1027
SKU: TC1027-504020

TelCom Semiconductor

📥 Download Datasheet

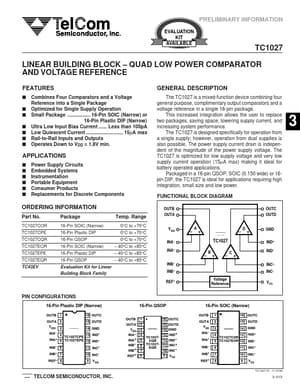

TC1027 Datasheet Preview — Preview of TC1027 PDF

Datasheet Details

Part number	TC1027
Manufacturer	TelCom Semiconductor
File Size	28.81 KB
Description	QUAD LOW POWER COMPARATOR AND VOLTAGE REFERENCE
Datasheet	TC1027_TelComSemiconductor.pdf

TC1027 Product details

Description

The TC1027 is a mixed-function device combining four general purpose, complimentary output comparators and a voltage reference in a single 16-pin package.

Features

s s s s s s s Combines Four Comparators and a Voltage Reference into a Single Package Optimized for Single Supply Operation Small Package 16-Pin SOIC (Narrow) or 16-Pin Plastic DIP (Narrow) Ultra Low Input Bias Current Less than 100pA Low Quiescent Current 15µA max Rail-to-Rail Inputs and Outputs Operates Down to VDD = 1.8V min. 2 3 4 5 6 7.
