TC04A - (TC04x / TC05x) LOW POWER / BANDGAP VOLTAGE REFERENCES

TelCom Semiconductor

Datasheet Details

Part number	TC04A
Manufacturer	TelCom Semiconductor
File Size	46.31 KB
Description	(TC04x / TC05x) LOW POWER / BANDGAP VOLTAGE REFERENCES

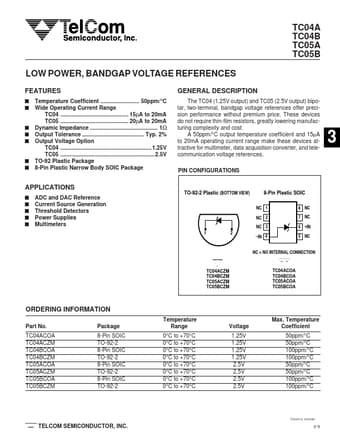

Datasheet	TC04A_TelComSemiconductor.pdf

The TC04 (1.25V output) and TC05 (2.5V output) bipolar, two-terminal, bandgap voltage references offer precision performance without premium price.

s s Temperature Coefficient 50ppm/°C Wide Operating Current Range TC04 15µA to 20mA TC05 20µA to 20mA Dynamic Impedance 1Ω Output Tolerance Typ. 2% Output Voltage Option TC04 1.25V TC05 2.5V TO-92 Plastic Package 8-Pin Plastic Narrow Body SOIC Package 1.
