TD1432 Datasheet PDF (2A 150KHz PWM Buck DC/DC Converter)

TD1432 - 2A 150KHz PWM Buck DC/DC Converter

Features

TD1432 is a monolithic asynchronous buck regulator. The device provides 2A of continuous load current over a wide input voltage of 9V to 40V. It uses current mode control to regulator the output voltage and provides fast transient response. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation, and a fixed-frequency oscillator. Anti-ring function is to reduce the influence of EMI. This device, available in a SOP-8 packa.

Datasheet Details

Part number	TD1432
Manufacturer	Techcode
File Size	334.08 KB
Description	2A 150KHz PWM Buck DC/DC Converter
Datasheet	TD1432 Datasheet

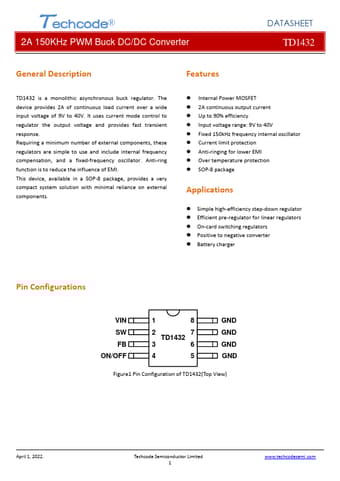

Additional preview pages of the TD1432 datasheet.
