TST121TC-XL01 - LCD Module

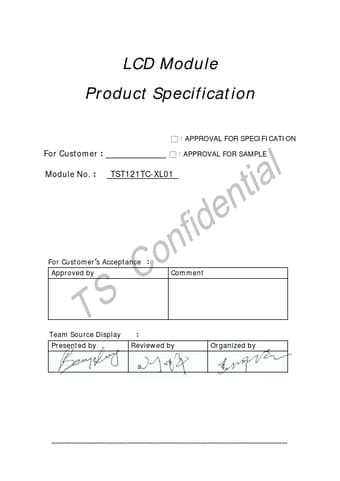

TST121TC-XL01 Datasheet Preview — Preview of TST121TC-XL01 PDF

Datasheet Details

Part number	TST121TC-XL01
Manufacturer	Team Source Display
File Size	753.35 KB
Description	LCD Module
Datasheet	TST121TC-XL01-TeamSourceDisplay.pdf

TST121TC-XL01 Product details

Description

Preliminary Release Editor StepheHunk www.tslcd.com Email: tslcd@tslcd.com Team Source Display LCM Specification 1. OUTLINE STRUCTURE AND PRINCIPLE TST121TC-XL01module is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a acklight.The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a c

Features

LVDS interface.
R. G. B input 8bit, 16.2 millions colors.
Resolution SVGA (800× 600 pixels).
Wide viewing angle 70°/70° (L/R); 50°/60° (U/D).
Contrast ratio 600 :1.
Module size 279.0 (H) ×209.0 (V) ×11.0 (D) mm.
Fast response time (Ton+ Toff= 35 ms）.
Color gamut (55%).
Edge light type backlight (2 CCFL Lamps).
Inverter less.
RoHS compliance TCO 5.0 compliance 2.
