AS-312 - Current Sense Inductors

Download the AS-312 datasheet PDF. This datasheet also covers the AS-211 variant, as both devices belong to the same current sense inductors family and are provided as variant models within a single manufacturer datasheet.

Features

  • Fully encapsulated for optimal PC board mounting.
  • Frequency range from 20kHz to 200kHz.
  • Primary current rating to 15 Amps.
  • Primary to secondary isolated to 2500 VAC.
  • Meets VDE norms.
  • Optimum performance over designated current and frequency range.
  • Competitive pricing due to high volume production.
  • Manufactured in ISO-9001 approved facility.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AS-211_TalemaElectronic.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AS-312
Manufacturer Talema Electronic
File Size 192.31 KB
Description Current Sense Inductors
Datasheet download datasheet AS-312 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AS-3224 Audio Toroidal Transformers AnTek
AS-3W-K MINIATURE RELAY Fujitsu Component
AS-0712 AS-0712-1/-2 ETC
AS-0712-1 AS-0712-1/-2 ETC
AS-0712-2 AS-0712-1/-2 ETC

Other Datasheets by Talema Electronic

Part Number Description
AS-310 Current Sense Inductors
AS-311 Current Sense Inductors
AS-31x (AS-xxx) Current Sense Inductors
AS-300 Current Sense Inductors
AS-301 Current Sense Inductors

Full PDF Text Transcription

Click to expand full text

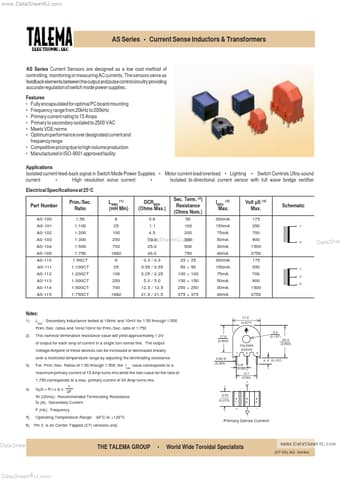

www.DataSheet4U.com AS Series • Current Sense Inductors & Transformers AS Series Current Sensors are designed as a low cost method of controlling, monitoring or measuring AC currents. The sensors serve as feedback elements between the output and pulse control circuitry providing accurate regulation of switch mode power supplies.
