Name: MMSZ75VCW
SKU: MMSZ75VCW-646088

The MMSZ75VCW by Tak Cheong Electronics is a 500mW SOD-123 SURFACE MOUNT Flat Lead Surface Mount Plastic Package Zener Voltage Regulators. Below is the official datasheet preview.

📥 Download Datasheet

MMSZ75VCW 500mW SOD-123 SURFACE MOUNT Flat Lead Surface Mount Plastic Package Zener Voltage Regulators by Tak Cheong Electronics - Datasheet Preview — Official preview page of the **MMSZ75VCW** 500mW SOD-123 SURFACE MOUNT Flat Lead Surface Mount Plastic Package Zener Voltage Regulators datasheet (Tak Cheong Electronics).

Datasheet Details

Part number	MMSZ75VCW
Manufacturer	Tak Cheong Electronics
File Size	249.44 KB
Description	500mW SOD-123 SURFACE MOUNT Flat Lead Surface Mount Plastic Package Zener Voltage Regulators
Datasheet	MMSZ75VCW_TakCheongElectronics.pdf

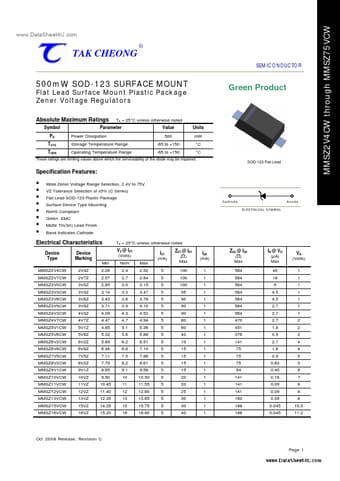

Additional preview pages of the MMSZ75VCW datasheet.

MMSZ75VCW Product details

Features

Wide Zener Voltage Range Selection, 2.4V to 75V VZ Tolerance Selection of ±5% (C Series) Flat Lead SOD-123 Plastic Package Surface Device Type Mounting RoHS Compliant Green EMC Matte Tin(Sn) Lead Finish Band Indicates Cathode TA = 25°C unless otherwise noted VZ @ IZT (Volts) Min Nom 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10 11 12 13 15 16 Max 2.52 2.84 3.15 3.47 3.78 4.10 4.52 4.94 5.36 5.88 6.51 7.14 7.86 8.61 9.56 10.50 11.
